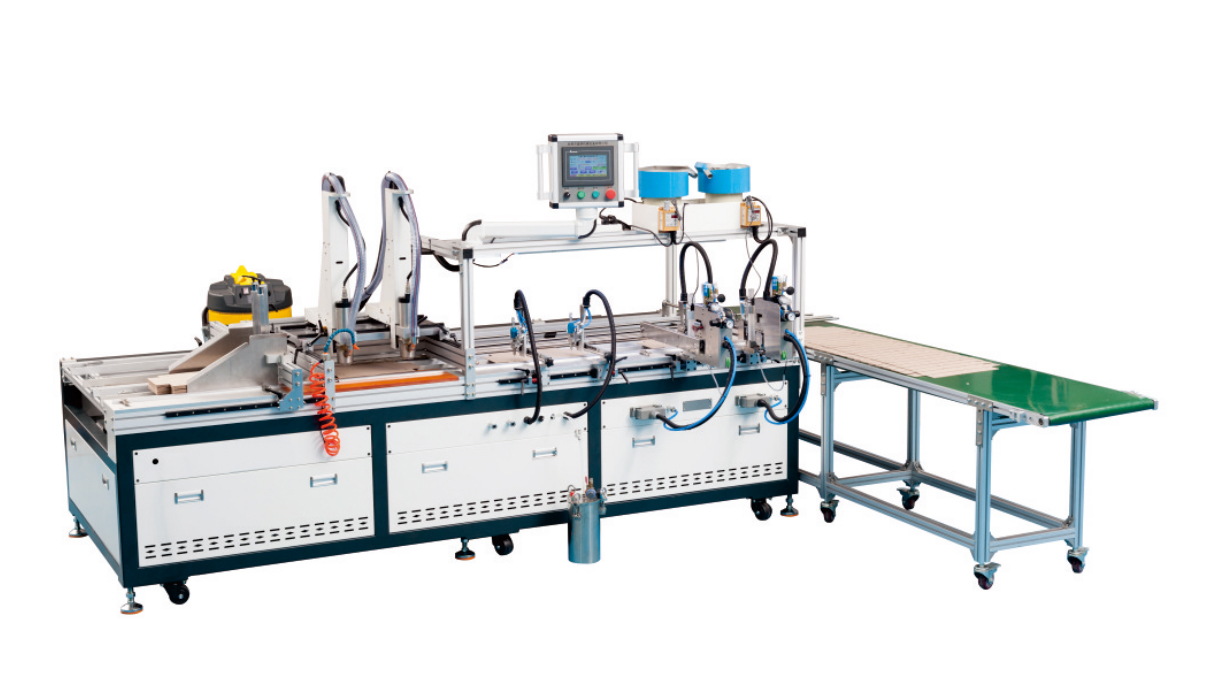

全自动磁铁铁片两用机(带挖孔 )HT-CT9560
Automatic pasting magnet and iron sheet machine(with drill hole)
机器特点
MACHINE FEATURES
- 本机采用钢材焊接，龙门铣加工整个工作平台。保证了钩板顺畅。
- 机器使用快干型白胶提高了生产量的同时，又保证了贴完磁铁上贴角机掉磁铁的问题。
- This machine adopts steel welding, gantry miling processing of the whole working platformTo ensure that the hook plate is smooth.
- The machine uses quick-drying white glue to increase the production capacity and ensurethat the maqnet is dropped after pasting the maqnet.
技术参数
TECHNICAL PARAMETERS
- 型号ModelHT-CT9560
- 生产最大尺寸Max size of case950mmX500mm(磁铁/铁片最大距离470mm)
- 生产最小尺寸Min size of case70mmX60mm
- 机器外型尺寸Machine dimensions3000mmX1400mmX1595mm
- 机器总重量Weight约750kg
- 铁片常规直径Diameter of iron sheet10-20mm(可定做其它尺寸)
- 磁铁直径Diameter of magnet8-20mm
- 贴头Paste head2个
- 生产速度Speed25-40Pcs/Min
- 胶桶容量Glue capacity2kg
- 功率Power6Kw
- 电源Power supply220V
- 气压Air pressure0.5-0.8Mpa
